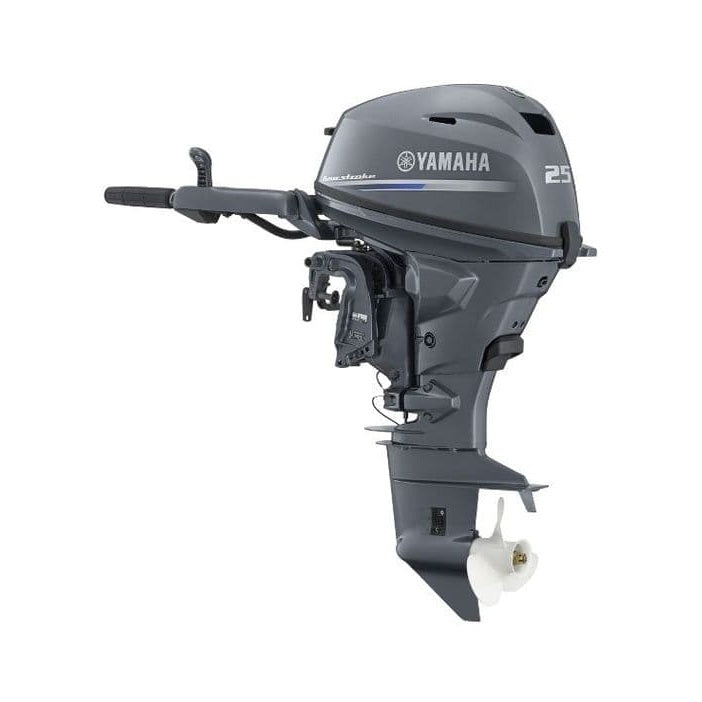

Yamaha F25GMHS 25HP Standard Shaft Outboard

Yamaha F25GMHS

Tiller Control | Manual Start | Manual Tilt | 57kg

This legendary twin cylinder, 4-stroke portable is now around 25% lighter! Open the throttle of our brand new F25 and you’ll immediately feel the effect of Yamaha’s innovative technologies at work, delivering big-engine features with unique power-to-weight performance and outstanding economy.

The specification now includes two resting pads (side and rear), improved carry handles, battery-less EFI and full compatibility with our Digital Network Gauges.

With its single-lever steering friction adjustment, new wide-span motor mount, high-output alternator and options of Variable Trolling Speed, Y-COP Security and Wide Range Power Trim & Tilt, the F25 is the natural choice.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 432 cc
• No. of cylinders/configuration: 2/In-line, SOHC
• Bore x stroke: 65.0 mm x 65.1 mm
• Prop shaft output at mid range: 18.4kW / 6000 rpm
• Full throttle operating range: 5,000 – 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: CDI
• Gear ratio: 2.08 (27/13)

Dimensions:

• Recommended boat transom height: S 424 mm
• Weight with propeller: F25GMHS: 57.0 kg
• Fuel tank capacity: separate, 25 litres
• Oil pan capacity: 1.1 litres

Features:

• Control: Tiller handle
• Start Method: Manual Pull
• Trim and tilt method: Manual Tilt
• Lighting Coil Alternator: Included / (Optional (12v – 16A Output with rectifier/regulator)
• Propeller: Included
