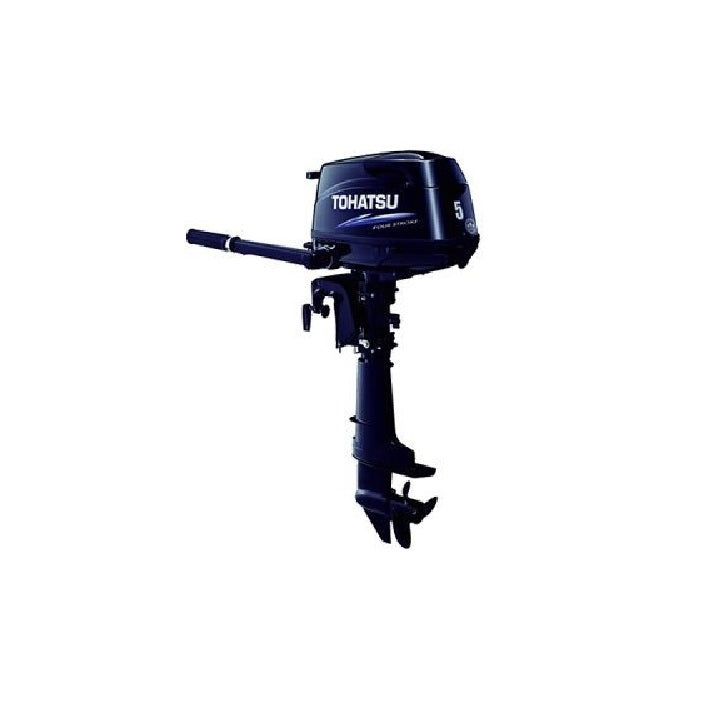

Tohatsu 5hp 4-stroke Outboard Engine

Engine Model 5hp, Manual Start, Tiller Handle. Features: Built-in 1.15 litre includes fuel connector for use with an optional external fuel tank.

Model: MFS5CD

• Engine (No. of Cylinders): 1
• Output: 5 hp (3.7 kw)
• Displacement: 123 cc (7.5 cu.in.)
• Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
• Starting: Manual Control
• Type: Tiller Handle
• Gear Shift: Forward – Neutral – Reverse
• Gear Ratio: 2.15:1
• Propeller Selection Range: 7″ – 9″
• Transom Height: 15″, 20″
• Fuel: Unleaded Gasoline (87 Octane)
• Oil Type: SAE 10W-30/40 (SF, SG, SH, SJ)
• Fuel Tank: 1.1 Lit Integral
• Separate Weight*: 25 kg Alternator
• Output: Optional: 12V 60W, 5A Max.
• RPM Range: 4,500 – 5,500
